Kernel File Systems as Userspace Servers


This chapter describes the symbiosis of background knowledge on them, see the respective web pages.

On Kernel File System Servers

The integration of the puffs and rump technologies enables mounting kernel file systems as userspace servers. Equivalent functionality to the in-kernel option is maintained, and an application accessing files is unable to tell the difference between the two.

A useful scenario for mounting a kernel file system as a userspace server is accessing untrusted media. As file system code is generally authored assuming a trusted and correct file system image, a corrupt or deliberately modified image can easily cause a kernel crash or security compromise. By using a userspace server, the compromise is limited to the userspace server program, not the whole system.

It also enables the mounting of kernel file systems which are not included as part of the kernel and loading a module is not desired. Additionally, using kernel file systems from different operating system versions is possible, since interfacing with the kernel is done through the puffs protocol, not the kernel binary interface. This is desired for example when wanting to take advantage of new functionality without upgrading the operating system or wanting to do a partial rollback to avoid a regression in a newer version.

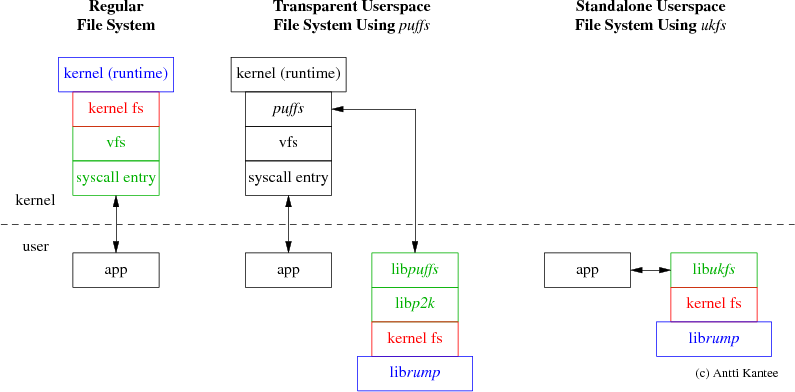

Figure 1. File System Access Comparison

File System Access Comparison

Mounting and Use

The use of kernel file systems as userspace servers requires the support for puffs in the kernel.

To mount the file system, the relevant rump_fs command must be run. These commands share the same suffix as the normal in-kernel mount_fs commands. For instance, the equivalent of mount_msdos is rump_msdos. The usage is also equal, so the manual page of the mount equivalent should be consulted. The only exception is that rump file systems do not require the use of vnconfig to mount regular files. Rather, such images can be mounted directly by using the image as the device file path.

To unmount, umount should be run as normal. While it is possible to violently kill the server process, this does not give the file system an opportunity to flush its caches and cleanly unmount and may result in data loss. In case the server process is violently killed, puffs automatically performs a forced unmount and no further action is necessary.

Examples

To mount a file system image as a read-only mount:

pain-rustique> rump_ffs -o ro ~/img/ffs.img /mnt
OR
pain-rustique> mount -t ffs -o ro,rump ~/img/ffs.img /mnt

If you want to mount a disk device instead, the procedure is the same. This example also instructs the file system to use journalling. Note: for reasons beyond the scope of this document, it is highly recommended you use the raw device instead of the usual block device.

pain-rustique> rump_ffs -o log /dev/rwd0e /mnt2

Mounting nfs works in a similar fashion. The command line flag -p makes sure a non-root mount is succesful if the server allows them:

pain-rustique> rump_nfs -p host:/export /mnt3

Finally, the option rump in fstab signals that the file system should be mounted using rump instead of the kernel file service. The following example is for specifying an nfs share mount from a laptop over wireless:

server:/m/server    /m/server    nfs    rw,noauto,-r=8192,-w=8192,rump

After this the file system will show up on the mountlist and you can access it through the mountpath like any other mounted file system.

Internals

Internally, kernel file systems are implemented against the kernel virtual file system layer. This layer defines a protocol which kernel file systems convert to their backend storage protocol to satisfy the operation. The result is then converted back to a format the virtual file system layer understands and passed back to caller (most likely an application, although it can be for example the NFS server).

Analogously, puffs file systems must interpret and convert the puffs file system interface protocol. While the puffs interface is very similar to the kernel virtual file system interface, there are differences in some parameters. For example, the virtual file system passes information about I/O as a reference to struct uiomove. In contrast, puffs passes this as explicit parameters.

Since a userspace kernel file system server attaches itself as a puffs file system, protocol conversion from puffs to the kernel virtual file system must happen, if the whole protocol stack is to work. This conversion of protocols is done by the p2k, or puffs-to-kernel, component. It is installed as libp2k and linked with all kernel file system servers.
